Fischer Plasterboard Fixing DuoBlade S Art.-No. 545676
The fischer DuoBlade is part of the innovative DuoLine and therefore consists of different components, which enable the best possible performance. The self-drilling tip allows a clean and effective drilling procedure. The fixing is screwed in the pre-positioned installation with the (cordless) screwdriver setting tool flush to the surface of the gypsum plasterboard. The fischer DuoBlade is adapted for wood, metal and chipboard screws from 4 to 5 mm thickness as well as different hooks and eye screws. Consequently, it is universally suitable for fixing e.g. smoke detectors, curtain rods and shutters securely and quickly. The DuoBlade is placed in the plasterboard with a conventional PZ 2 drive. No special setting device is required.
The advantages / Product description
- An innovative product of the fischer DuoLine with intelligent combinations for more power and more intelligence.
- The self-drilling fischer DuoBlade allows fast and easy installation in gypsum plasterboard and gypsum fibreboard.
- The black metal tip guarantees simple and safe installation.
- High torque when anchor is installed for the feelgood-factor and an optimum feeling when setting.
- PZ 2 drive - same drive for plug and screw.
The fischer DuoBlade is part of the innovative DuoLine and therefore consists of different components, which enable the best possible performance. The self-drilling tip allows a clean and effective drilling procedure. The fixing is screwed in the pre-positioned installation with the (cordless) screwdriver setting tool flush to the surface of the gypsum plasterboard. The fischer DuoBlade is adapted for wood, metal and chipboard screws from 4 to 5 mm thickness as well as different hooks and eye screws. Consequently, it is universally suitable for fixing e.g. smoke detectors, curtain rods and shutters securely and quickly. The DuoBlade is placed in the plasterboard with a conventional PZ 2 drive. No special setting device is required.
Application and approval

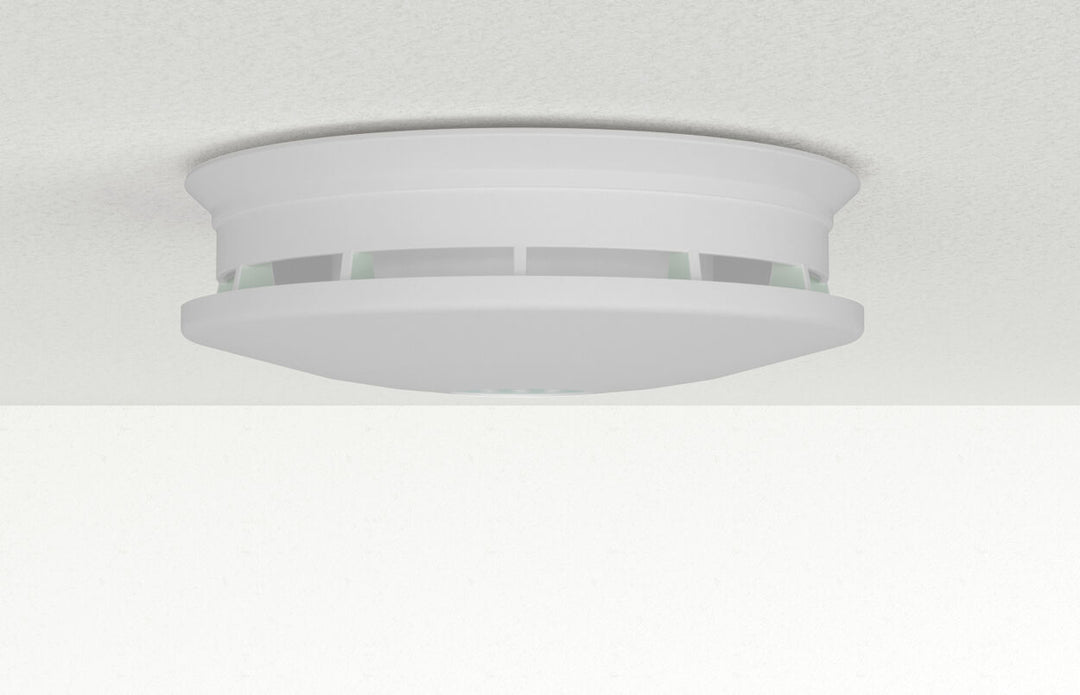

- Smoke detectors
- Mirrors
- Curtain rods
- Blinds
- Lamps
- Pictures
Building materials
- Gypsum plasterboard, single and double-planked
- Gypsum fibreboard
- Lightweight cement boards
Assembly instruction
- The fischer DuoBlade is suitable for pre-positioned installation.
- The metal tip for better heat-resistant and cutting characteristics. Especially in double-layered plasterboard.
- The fischer DuoBlade can be used with wood, metal and chipboard screws of Ø4.0 to Ø5.0 mm.
- In gypsum fibreboard, pre-drilling with a drill Ø 8mm is recommended.
| Min. thickness to first supporting layer (t) | 50 mm |
| Anchor length (l) | 44 mm |
| Anchor length without drill tip (l1) | 29 mm |
| Anchorage depth (hef) | 9.5 - 25 mm |
| Min. bolt penetration (lE,min) | 28 mm |
| Wood and chipboard screws (ds) | 4.5 x 40 mm |
| Packaging | Folding box |
| Amount | 25 pcs. |
| GTIN (EAN-Code) | 4048962323719 |
